Orbis Set 11369

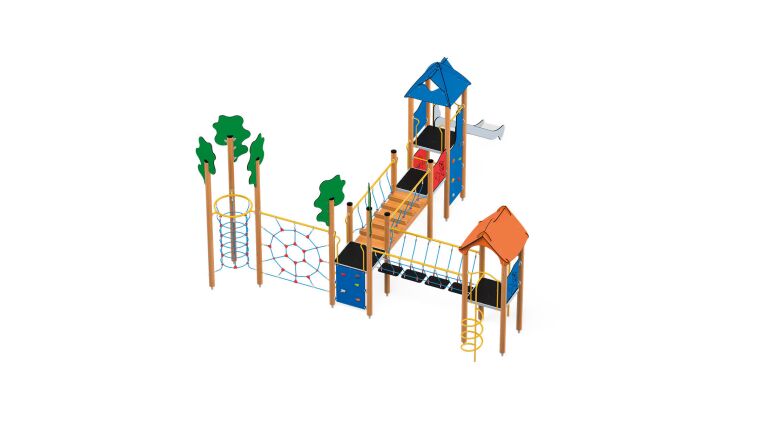

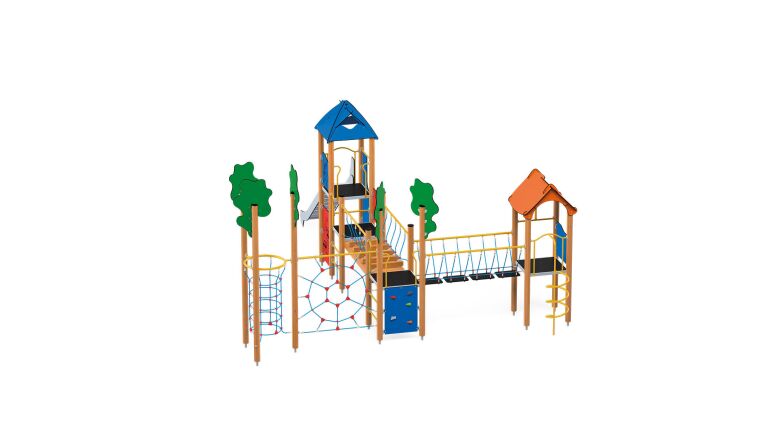

4 square platforms, envelope hipped roof with dormers, gable roof, mobile rope bridge, rope bridge with rectangles, deep stainless steel slide, 4 trees, 5 steps with double mouting, climbing wall with a hole, fireman pipe, handling panel "Parrot", spider rope interlace, rope climbing tower, spiral entrance, vertical climbing wall, 3 security panels
- Serial number: 11369EPZN
- Price: ON DEMAND
Bearing posts have a diameter of 12 cm and are made of glue-laminated, round, wood, fixed 10 cm above the ground level with metal anchors. Antislip platforms. Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings. Sliding surface is made of acid-proof, stainless steel sheet. Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant. All fittings and connectors are weather and UV resistant. Wood elements are oiled or covered with a colour glaze. Steel elements are protected against corrosion by zinc primer and powder paint coating.
| Height (m) | 3.87 |
| Width (m) | 8.55 |
| Length (m) | 7.15 |
| Freeheight of fall (m) | 1.99 |

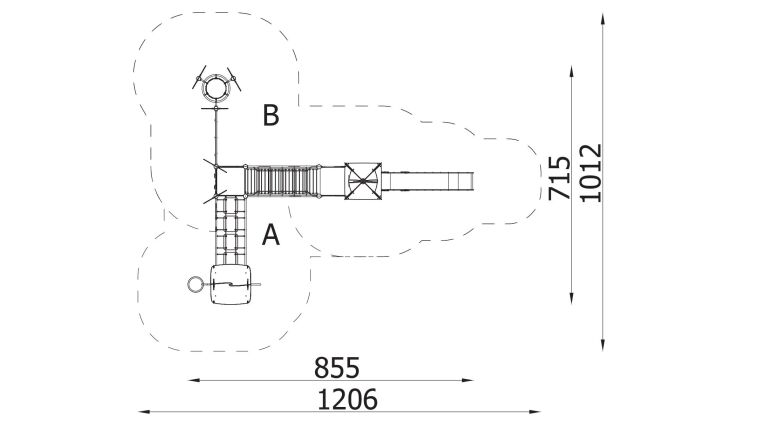

| Safety area dimension | 10,12 - 12,06 |
| User numbers | 16 |
| Compliance with the norm | EN-1176-1:2017-12 |
The method, date and cost of delivery are each time agreed by the Parties before shipment. We comprehensively organize transport to the place indicated by the client. However, the full cost of transportation is borne by the customer. It is the client's responsibility to prepare the project and report the construction of the playground to the appropriate authorities, prepare a safe surface, dismantle old equipment, bushes and trees and prepare the site. We provide detailed assembly instructions, the customer is responsible for the assembly itself.
