Quadro Set 12123

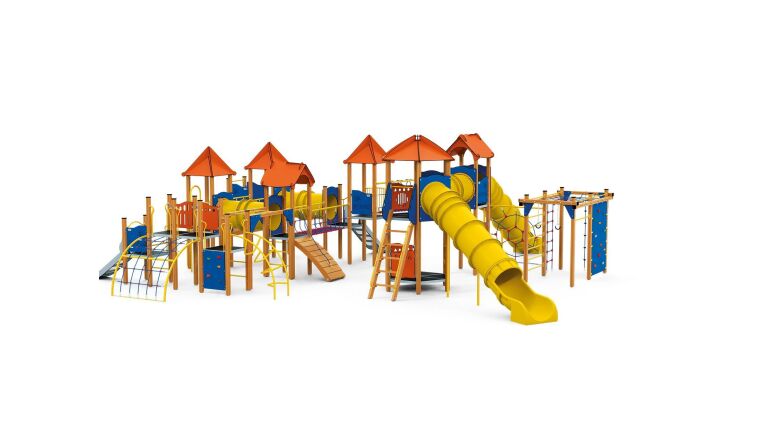

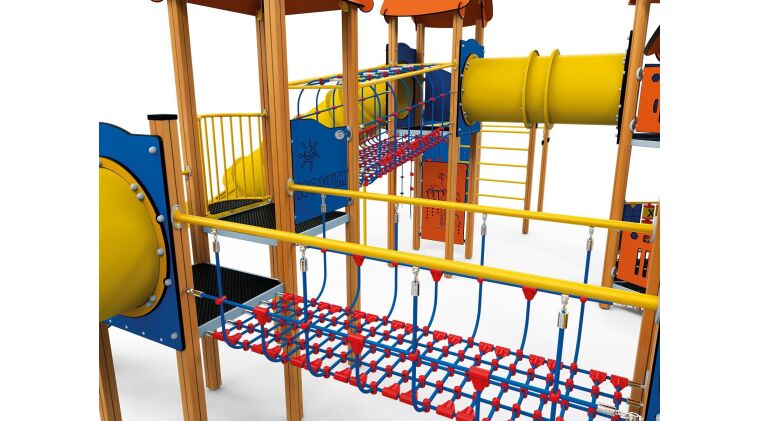

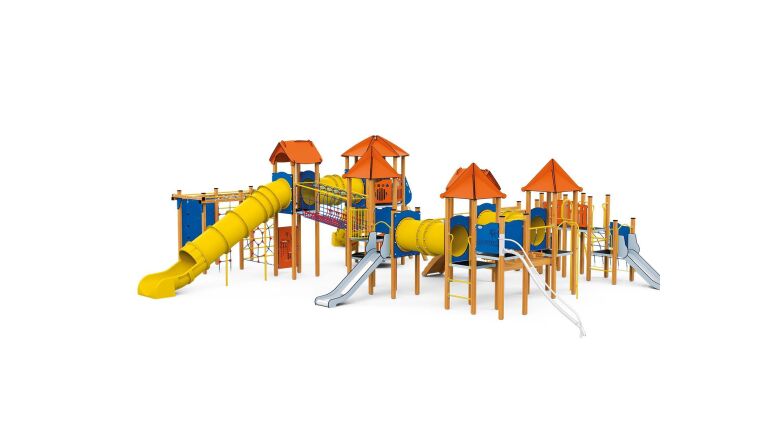

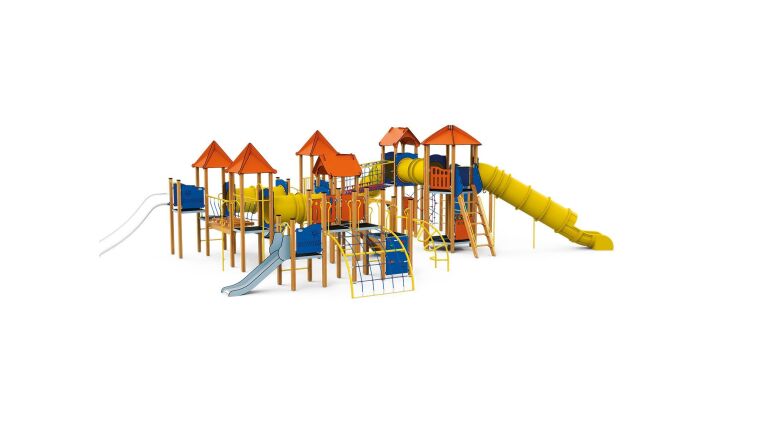

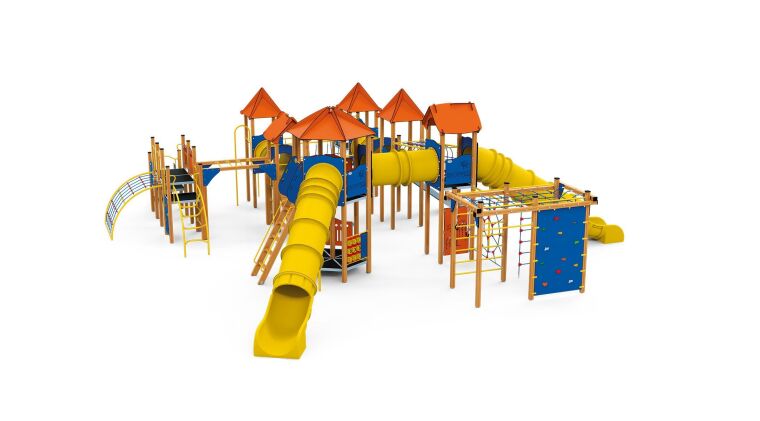

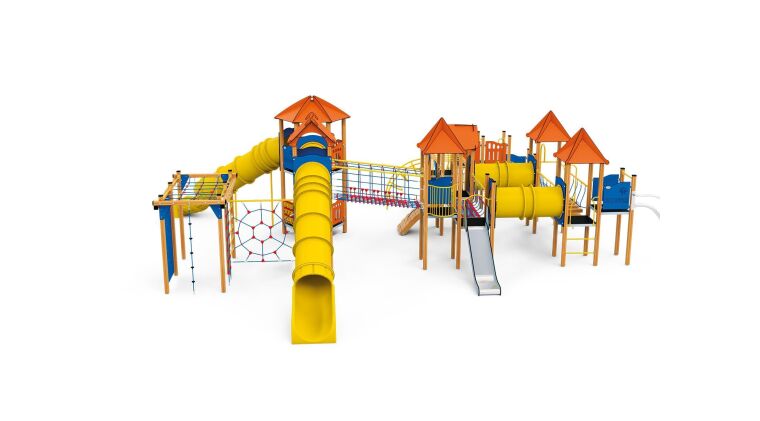

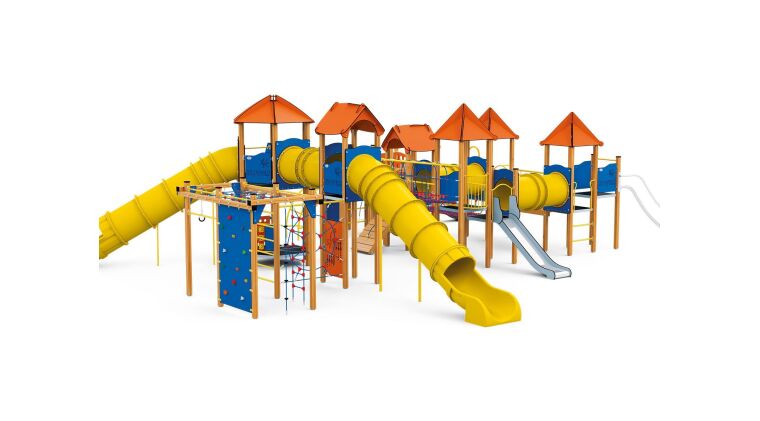

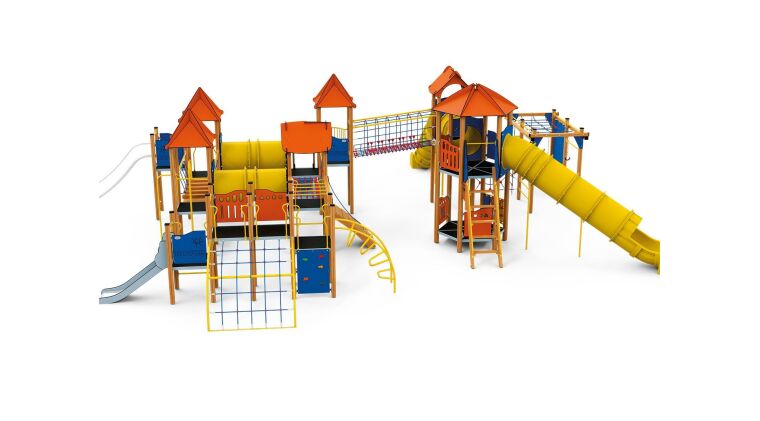

Complete play castle with 6 towers, 10 square platforms,12 triangular platforms, spiral tunnel slide, tunnel slide, snail slide, stainless steel slide, deep stainless steel slide, rope bridge, rope tunnel bridge, 3 tunnel bridge tubes, arched interlace, spider rope interlace, 8 steps with double mouting, climbing trap, Inclined ladder, fireman pole, spiral entrance, arched entrance, tic-tac-toe, balcony, security panels, hipped roof, 2 gable roofs, castle tower roof, horizontal ladder, beam connecting rope bridge and climbing wall, handling panel "Parrot", multifunctional climber
- Serial number: 12123EPZN
- Price: ON DEMAND

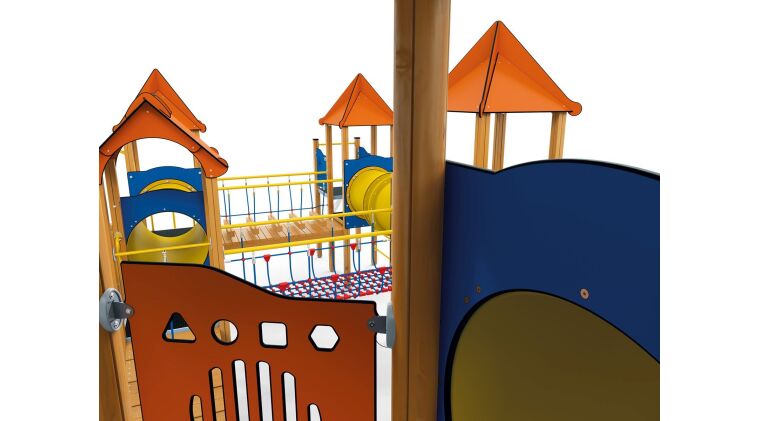

Bearing posts are square and have a cross section of 9x9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors. Antislip platforms. Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings. Sliding surface is made of acid-proof, stainless steel sheet. Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant. All fittings and connectors are weather and UV resistant. Wood elements are oiled or covered with a colour glaze. Steel elements are protected against corrosion with zinc primer and powder paint coating.

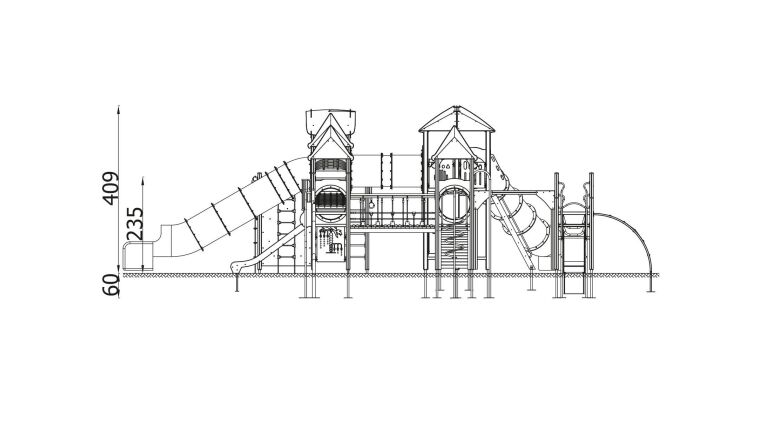

| Height (m) | 4.09 |
| Width (m) | 12.91 |
| Length (m) | 15.36 |
| Freeheight of fall (m) | 2.35 |

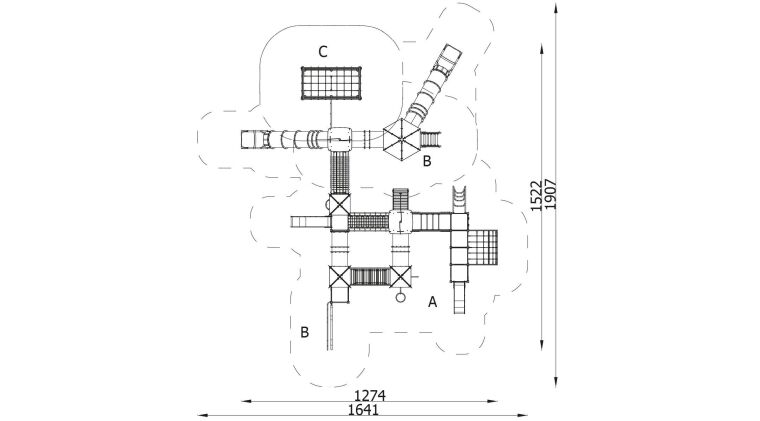

| Safety area dimension | 16,41 - 19,07 |
| User numbers | 80 |
| Compliance with the norm | EN-1176-1:2017-12 |
The method, date and cost of delivery are each time agreed by the Parties before shipment. We comprehensively organize transport to the place indicated by the client. However, the full cost of transportation is borne by the customer. It is the client's responsibility to prepare the project and report the construction of the playground to the appropriate authorities, prepare a safe surface, dismantle old equipment, bushes and trees and prepare the site. We provide detailed assembly instructions, the customer is responsible for the assembly itself.
