Diase's Ship

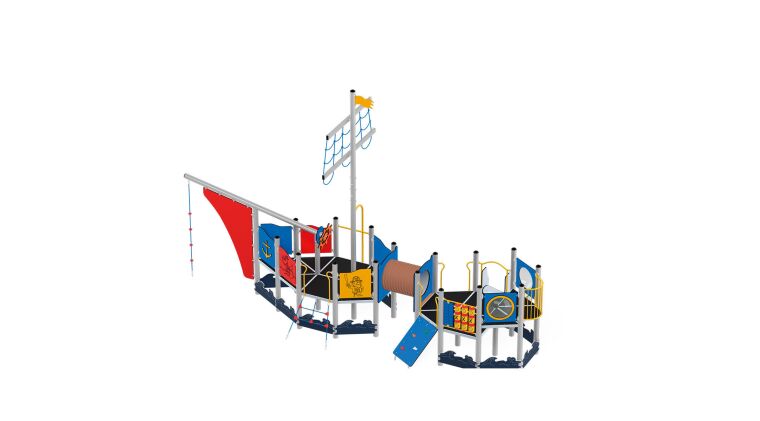

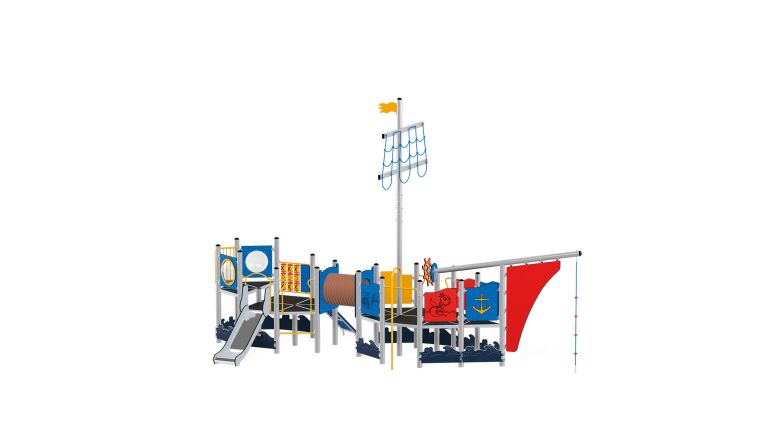

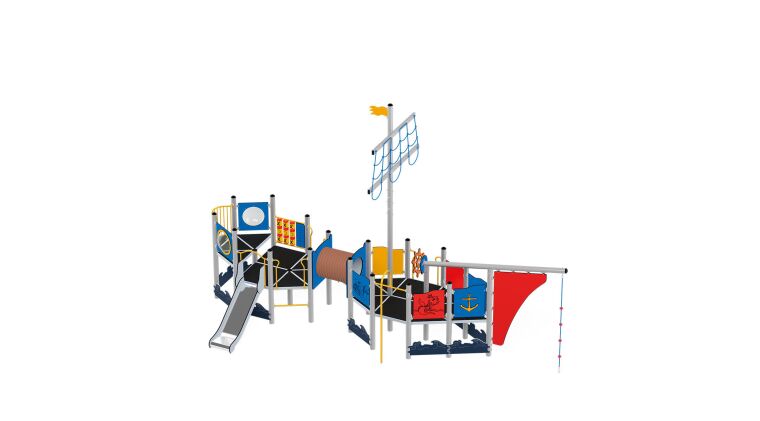

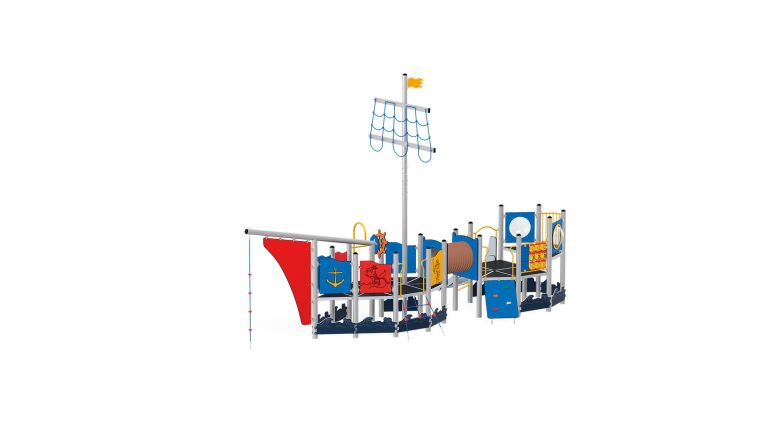

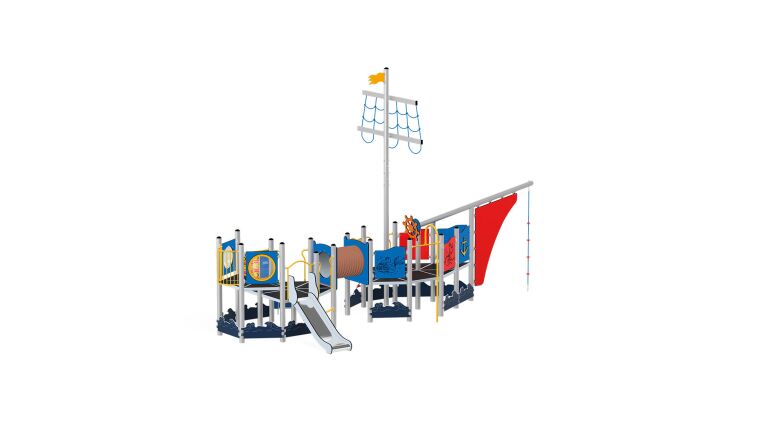

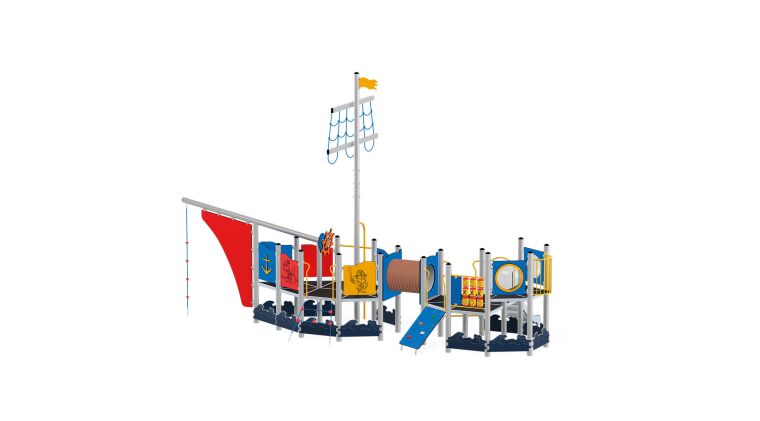

A large ship with 4 square platforms, 13 triangular platforms, stainless steel slide, pipe tunnel bridge, rope entrance, fireman pipe, climbing entrance, tic-tac-toe, balcony, 21 security panels, ship mast, steering wheel and a compass.

  • Serial number: 11120MPN
  • Price: ON DEMAND

Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground. Antislip platforms. Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings. Sliding surface is made of acid-proof, stainless steel sheet. Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant. All fittings and connectors are weather and UV resistant. Steel elements are protected against corrosion by zinc layer and powder paint coating.

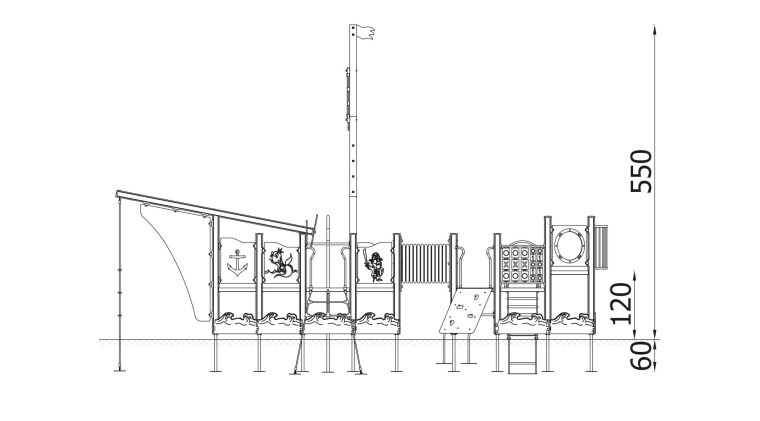

Height (m) 5.55
Width (m) 8.59
Length (m) 3.91
Freeheight of fall (m) 1.2

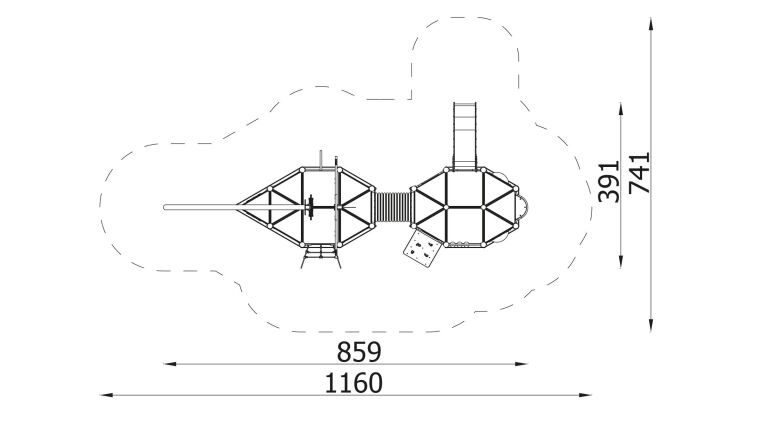

Safety area dimension 11,6 - 7,41
User numbers 22
Compliance with the norm EN 1176

The method, date and cost of delivery are each time agreed by the Parties before shipment. We comprehensively organize transport to the place indicated by the client. However, the full cost of transportation is borne by the customer. It is the client's responsibility to prepare the project and report the construction of the playground to the appropriate authorities, prepare a safe surface, dismantle old equipment, bushes and trees and prepare the site. We provide detailed assembly instructions, the customer is responsible for the assembly itself.
